Ball Bearing Door Hinge in Polished Stainless Steel, Fire Rated (76mm x 51mm / 3" x 2") | 14851

14851

Ball Bearing Door Hinge in Polished Stainless Steel, Fire Rated (76mm x 51mm / 3
Ball Bearing Door Hinge in Polished Stainless Steel, Fire Rated (76mm x 51mm / 3" x 2") | 14851 Ball Bearing Door Hinge in Polished Stainless Steel, Fire Rated (76mm x 51mm / 3" x 2") | 14851
Show all images ▼
Hide images ▲
Sold as: Pair | Dispatch in 1-2 working days
Buy 5+ @ £3.512.92 each
RRP:
£4.99
£4.16
£3.69
inc / ex VAT
£
inc / ex VAT
-
Top Seller Top Pick
  • Fire tested for 30 and 60 minute doors
  • BS EN 1935 grade 7 performance tested
  • Smooth ball bearing action
  • Length: 76mm
  • Width: 51mm
  • Leaf Thickness: 2mm
  • Made by Eclipse Hardware

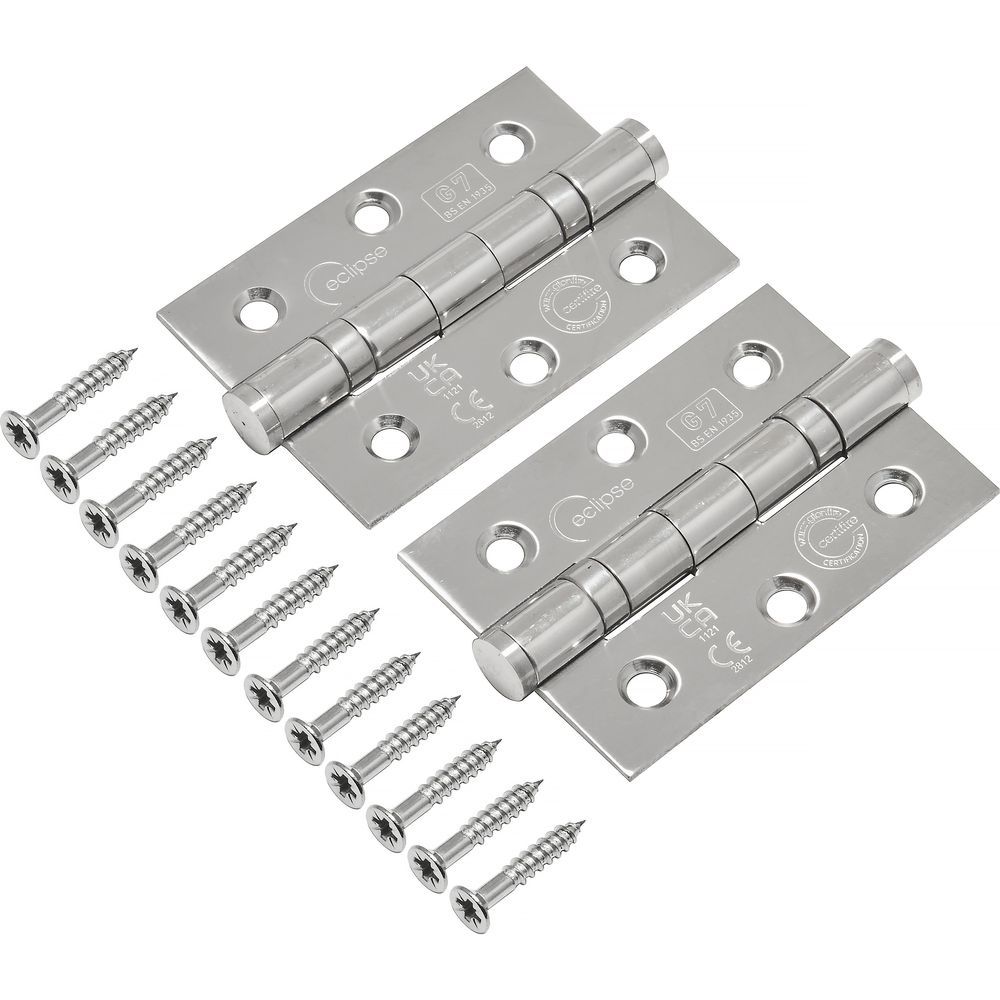

This pair of fire tested double ball bearing hinges, 14851, comes in polished stainless steel at 76mm x 51mm with matching pozi drive wood screws.

Full Details >
×
Ask a Question

If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!

Product Detail Product Detail

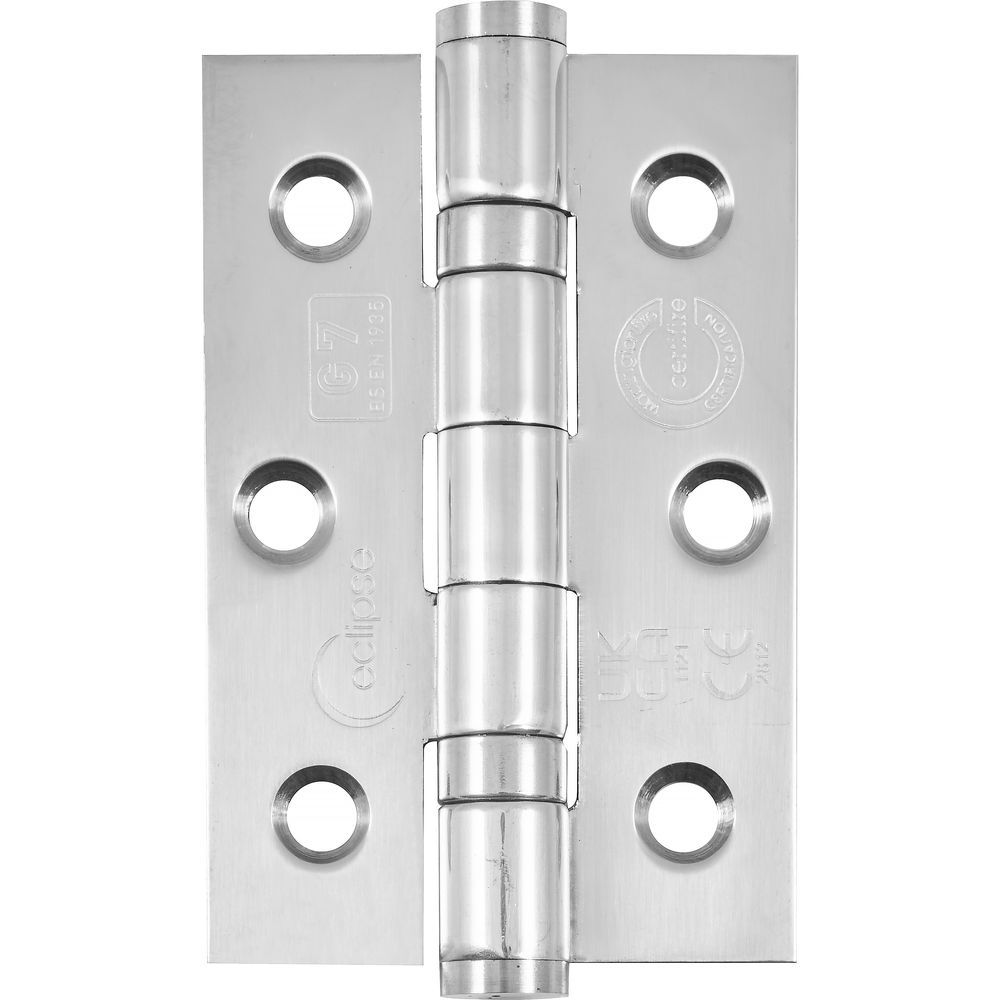

Eclipse Hardware 14851 Polished Stainless Steel Fire Rated Ball Bearing Hinge, 76mm x 51mm, Pair

The Eclipse Hardware 14851 is a pair of grade 7 double ball bearing hinges in grade 202 stainless steel with a polished, mirror finish, 76mm by 51mm.

They are performance tested to BS EN 1935:2002 grade 7 and fire tested to BS EN 1634-1:2000 on 30 and 60 minute timber doors; they are not Certifire hinges. For fire doors, fit with intumescent hinge pads. Each leaf has three screw holes for a screw-on face fixing, and the frame and door need a slight chisel to take them.

They suit medium to light-weight internal timber doors up to 40kg, and come with matching colour 10 x 32mm pozi drive wood screws. They match complementary products on our website.

At a glance

  • Double ball bearing hinges
  • Grade 202 stainless steel, polished mirror finish
  • BS EN 1935 grade 7
  • Fire tested to BS EN 1634-1 for 30 and 60 minute doors
  • Three screw holes per leaf
  • For internal timber doors up to 40kg
  • Matching wood screws included
  • Sold as a pair

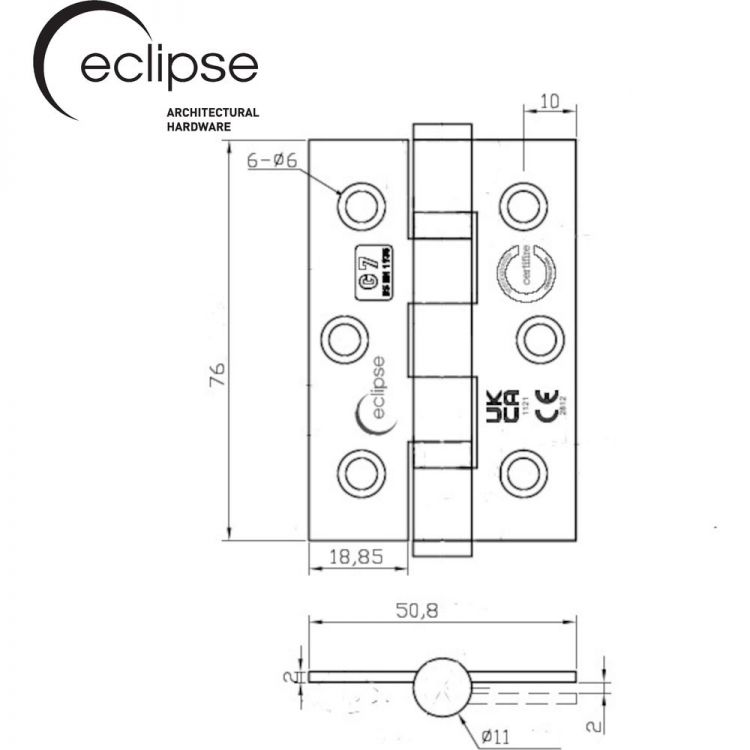

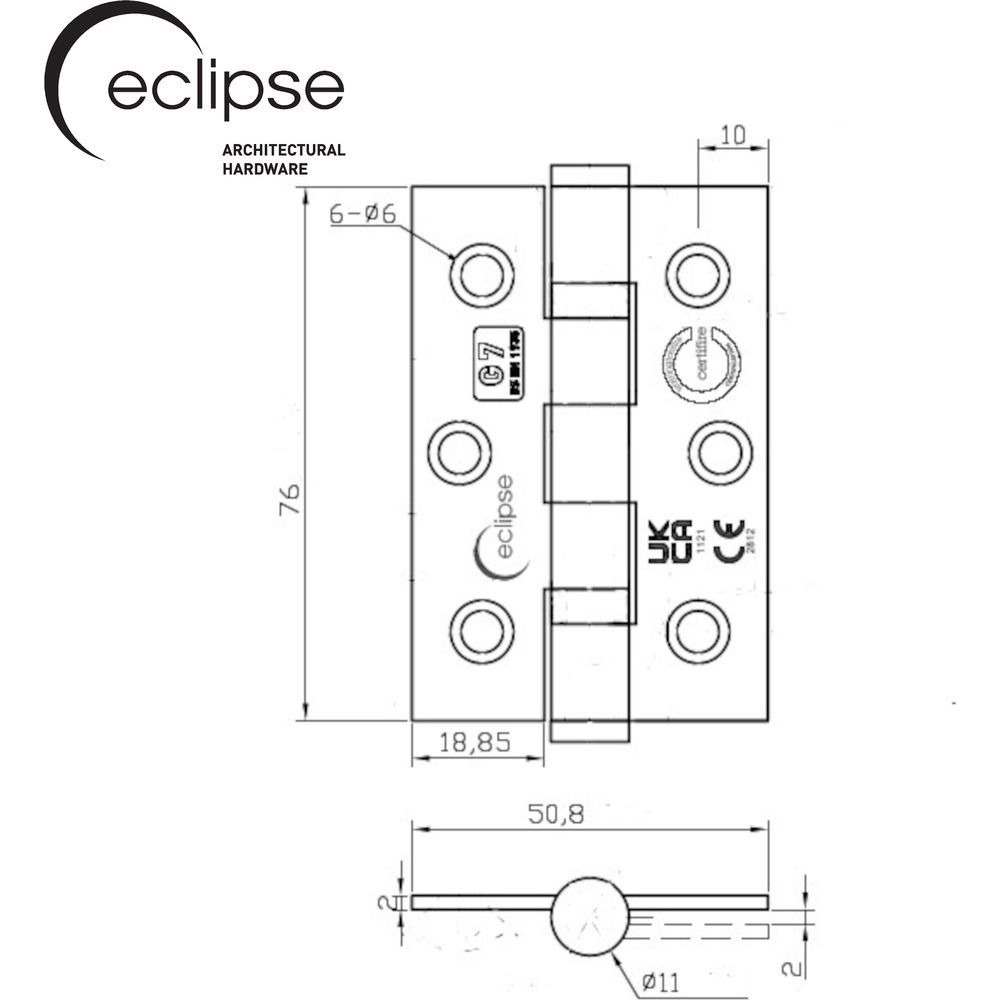

Dimensions

Length: 76mm
Width: 51mm
Leaf thickness: 2mm
Max door weight: 40kg

Product Specification Product Specification
Brand:Eclipse HardwareLength:76 mm
Width:51 mmProduct Finish:Polished Silver
Product Colour:Polished Stainless Steel Door Hinges
Style:Modern Door Hinges
Pack Size:PairLeaf Thickness:2 mm
Hinge Size:3"Type:Ball Bearing Hinge
Approx. Length:3 inchesApprox. Width:2 inches
GTIN:5032968148512
