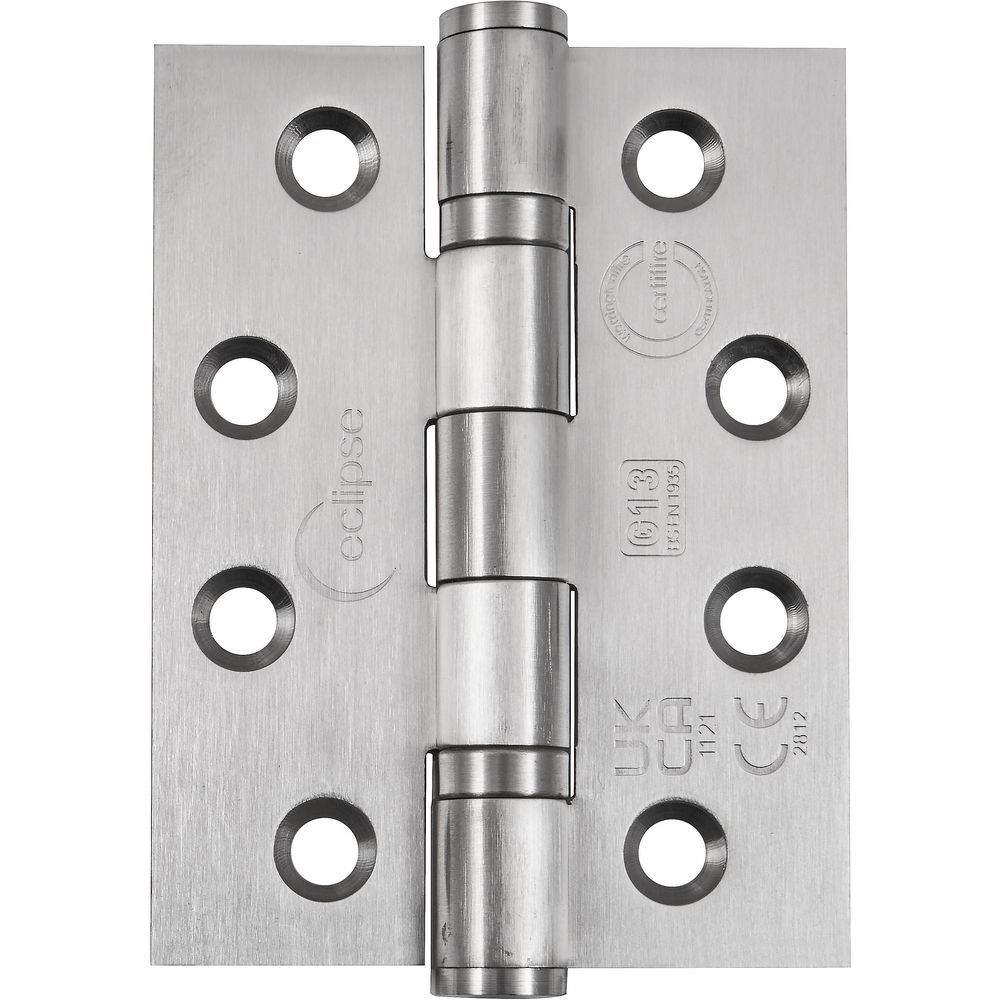

Ball Bearing Door Hinge in Satin Stainless Steel, Fire Rated (102mm x 76mm / 4" x 3") | 14854

14854

Ball Bearing Door Hinge in Satin Stainless Steel, Fire Rated (102mm x 76mm / 4
Ball Bearing Door Hinge in Satin Stainless Steel, Fire Rated (102mm x 76mm / 4" x 3") | 14854 Ball Bearing Door Hinge in Satin Stainless Steel, Fire Rated (102mm x 76mm / 4" x 3") | 14854
Show all images ▼
Hide images ▲
Sold as: Pair | Dispatch in 1-2 working days
Buy 5+ @ £3.613.01 each
RRP:
£5.99
£4.99
£3.80
inc / ex VAT
£
inc / ex VAT
-
Top Seller Top Pick for "Brushed Metal Door Hinges"
  • Sold as a pair
  • High quality satin stainless steel finish
  • Length: 102mm
  • Width: 76mm
  • Leaf Thickness: 3mm
  • Made by Eclipse Hardware

Double Ball Bearing Hinge, Fire Rated, 102 x 76 x 3mm, Satin Stainless Steel, Stainless Steel (Pair)

  • Frisco Eclipse, stainless steel 4 Inch fire rated Grade 13 double ball bearing race hinges.
  • Sold as a pair of hinges (two hinge per pack).
  • Brushed satin finish, on a stainless steel base material, grade 202 internal use.
  • Supplied with matching colour size 10 x 32mm pozi-drive wood screws.
  • These are CF336 Certifire hinges, and grade 13 BS EN 1935:2002 Performance Tested
Full Details >
Sizes:
£3.98 £3.32
3in x 2in
4in x 3in
×
Ask a Question

If you have a question about this product, please use the area below, click 'SUBMIT' when you're done and we'll get back to you ASAP!

Product Detail Product Detail

Frisco Eclipse, stainless steel 4 Inch fire rated Grade 13 double ball bearing race hinges.

• BS-EN-1935 Grade 13 ball bearing hinges for use on fire rated timber frame doors.

• Ball bearing hinges have a very smooth and maintenance free action.

• Brushed satin finish, on a stainless steel base material, grade 202 internal use.

• Screw on face fitting for door and frame, four screw holes per hinge leaf (8 per hinge).

• A slight chisel of the frame and door is required to accept these hinges.

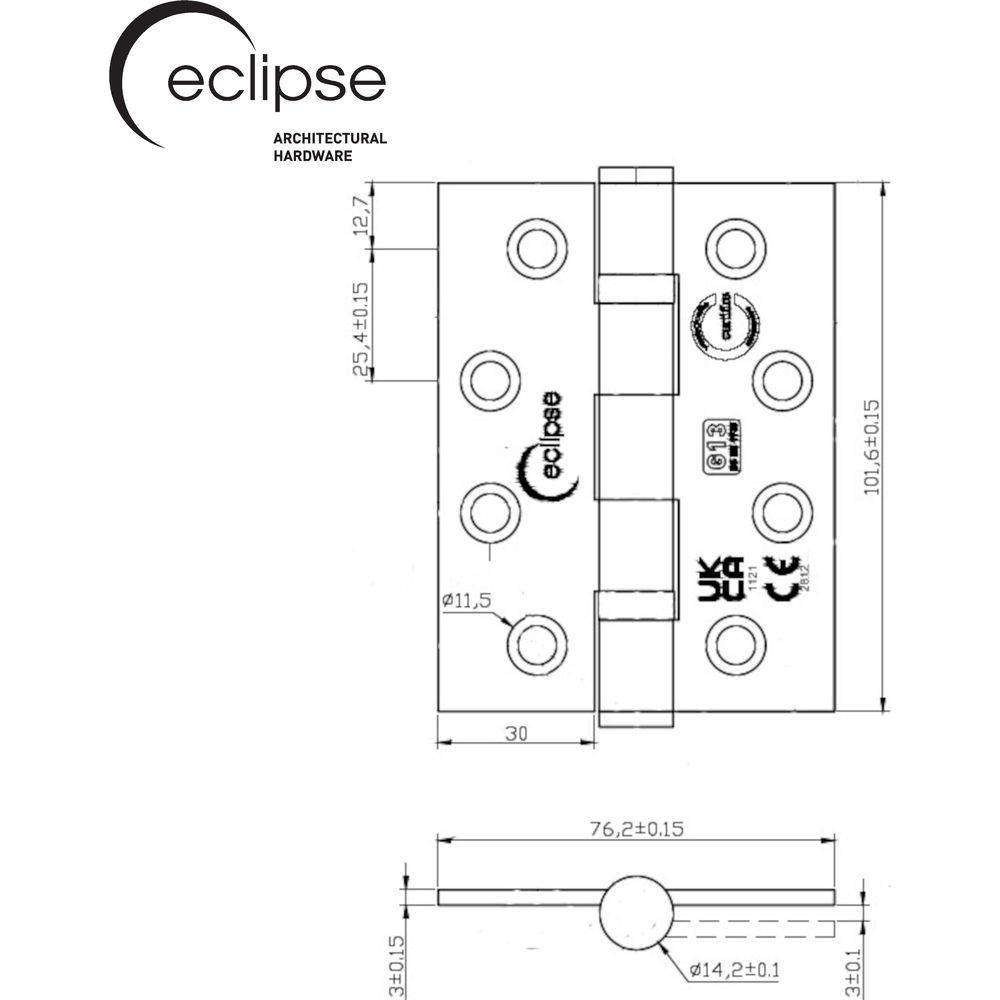

• Dimensions: (scroll down to view illustration - generic hinge image)

                 Size A :

Length

- 102mm

                 Size B :

Width

- 76mm

                 Size C :

Leaf Thickness

- 3mm



Max Door Weight

- 120kg

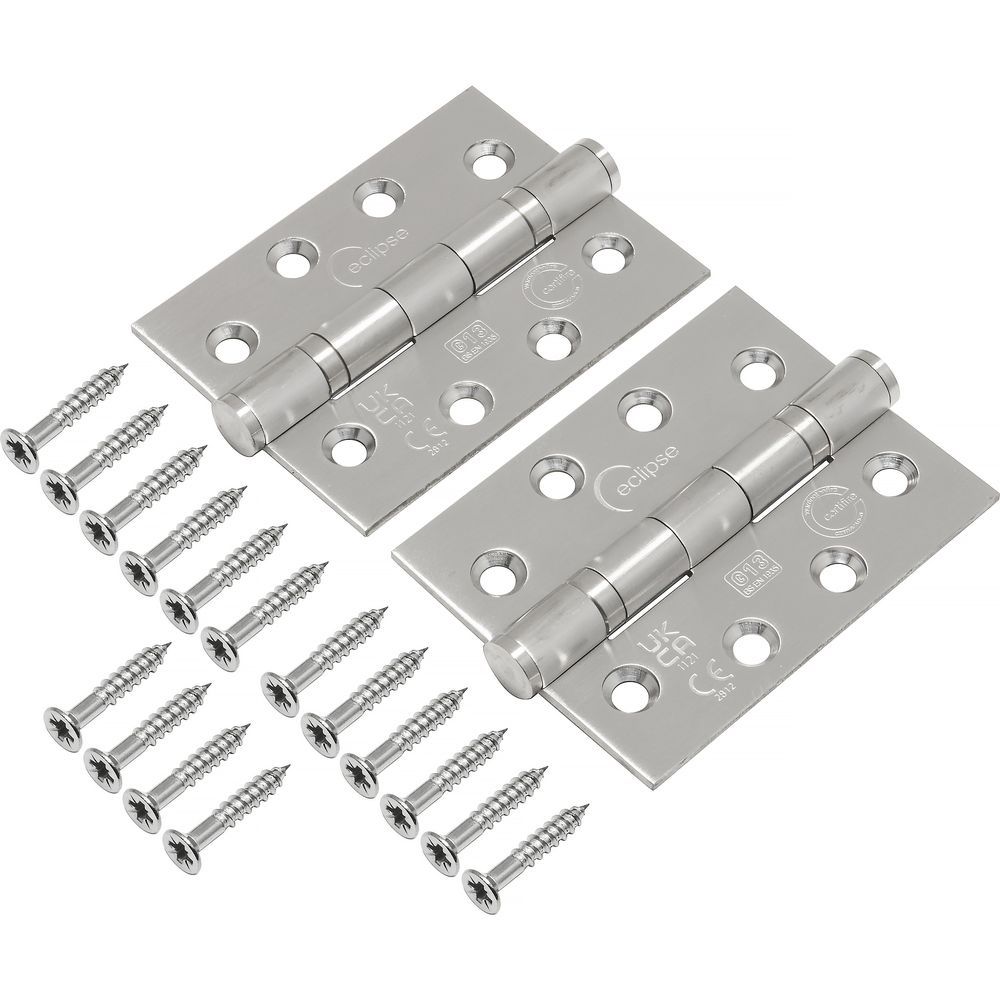

• Sold as a pair of hinges (two hinge per pack).

• Supplied with matching colour size 10 x 32mm pozi-drive wood screws.

• BS EN 1634-1:2000 Fire Tested timber doors 30 and 60 minute.

• These are CF336 Certifire hinges, and grade 13 BS EN 1935:2002 Performance Tested

• Intumescent hinge pads should be fitted as standard on fire door applications

• Recommended For use on medium to heavy-weight internal timber wooden doors.

• Also available in a 3 inch version for smaller lightweight doors

Product Specification Product Specification
Brand:Eclipse HardwareLength:102 mm
Width:76 mmAlternative Product Codes:ADO-IN523/1SSS BUTTS, FS-14854
Product Finish:Satin SilverProduct Colour:Satin Stainless Steel Door Hinges
Style:Modern Door Hinges
Pack Size:Pair
Leaf Thickness:3 mmHinge Size:4"
Type:Ball Bearing HingeApprox. Length:4 inches
Approx. Width:3 inchesGTIN:5032968148543
